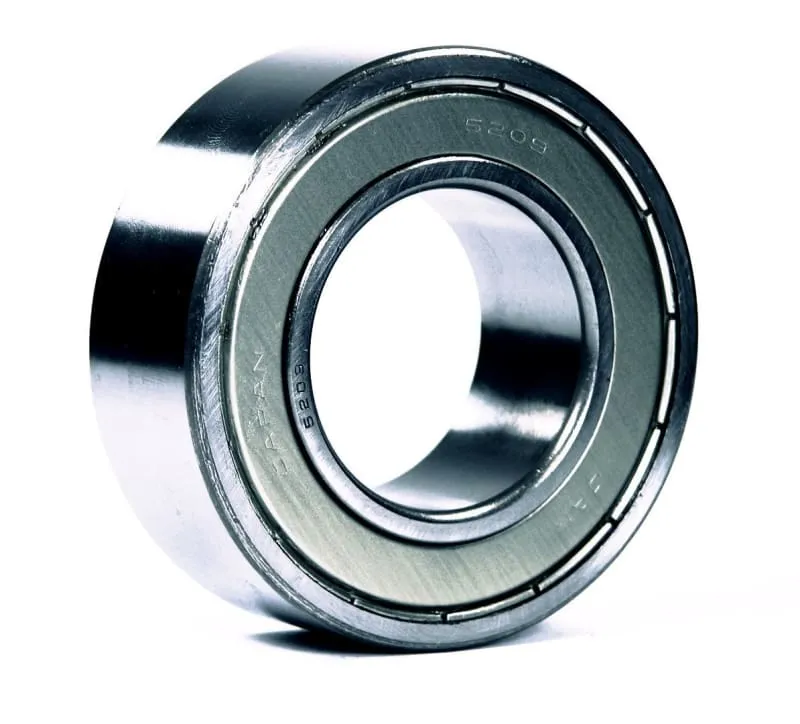

5204-ZZ C3, 2-Row Angular Contact Ball Bearing Double-Row angular contact ball bearing, supporting combined radial and bidirectional thrust loads Ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity Metal shields  on both sides of the bearing help to keep lubricant in and contaminants out without the drag of rubber seals Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise C3 axial internal clearance for applications where thermal expansion is a factor, i.e.: higher running speeds.

• Item: Angular Contact Ball Bearing
• Type: Double Row
• Bore Dia.: 20mm
• Outside Dia.: 47mm
• Width: 20.6mm
• Max. RPM: 12000
• Dynamic Load Capacity: (Lb.)4400
• Dynamic Load Capacity: (N)19572.175128
• Static Load Capacity: (Lb.)2700
• ABEC Tolerance: 1
• Temp. Range: (F)-40 Degrees to 350 Degrees
• Cage Materia: lHigh-Speed Polyamide
• Shield Material: Steel
• Lubrication: Polyrex EM Grease
• Made in Japan
